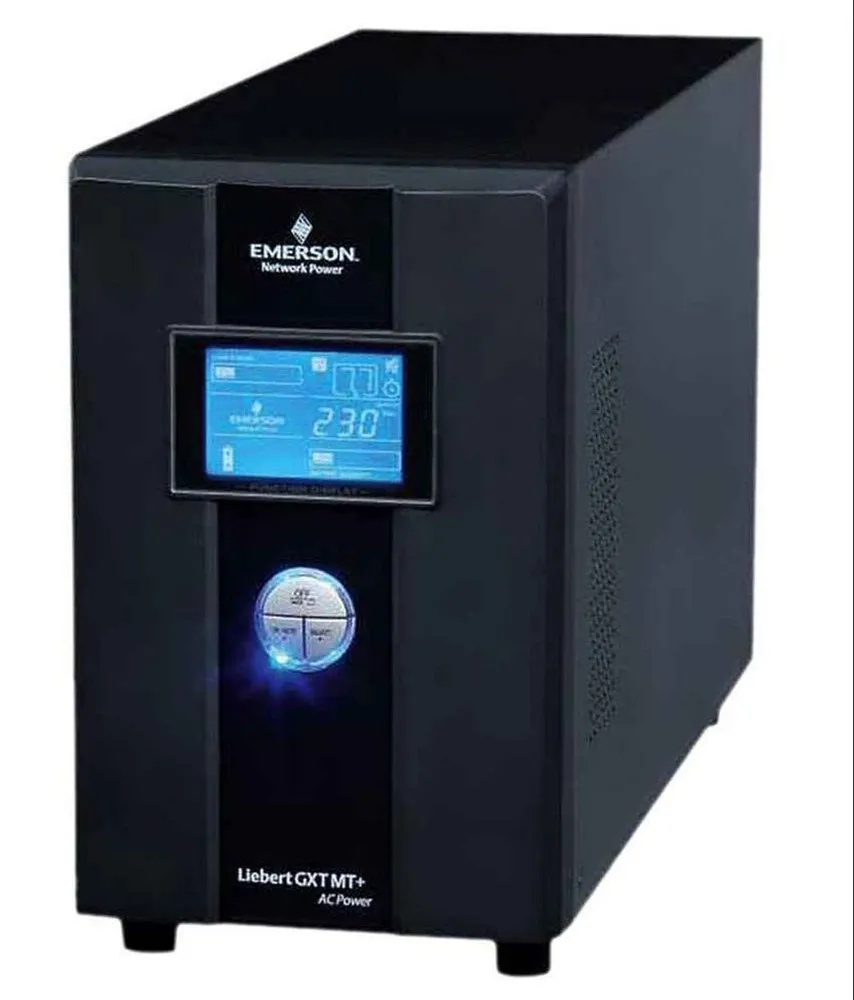

Libert GXT MT + CX 1 KVA UPS SB (0.8 O/P)

Libert GXT MT + CX 1 KVA UPS SB (0.8 O/P) Specification

Power Capacity
1 KVA / 800 Watts

Battery Backup
Standard backup minimum 10 minutes at full load

Material
Metal Cabinet

Cooling System
Forced Air Fan Cooled

Batteries Type
Sealed Maintenance Free (SMF) Lead Acid Batteries

Control System
Digital Signal Processor (DSP) Control

Port Type
USB/ Serial RS232

Efficiency (%)
>85% (AC-AC)

Type
Online UPS

Phase
Single Phase In & Single Phase Out

Protection
Overload, Short Circuit, Over Temperature, Over Voltage, Under Voltage, Surge Protection

Output Voltage
230 V AC 1%

Recharge Time
< 6 Hours up to 90% capacity

Back-Up Time
10-20 Minutes (dependant on connected load)

Interface Type
RS-232/USB

Size
145 x 397 x 220 mm (W x D x H)

Weight
Approx. 13 kg

Color
Black

Input Voltage Range
160~280V AC

Display
LCD Display Panel for Real-time Operation Parameter

Audible Noise
<50 dBA at 1 meter

Alarm
Audible and Visual (On Battery, Low Battery, Overload, Fault)

Waveform Type
Pure Sine Wave Output

Operating Temperature
0~40C

Relative Humidity
0-95% Non-condensing

Input Frequency Range
40-70 Hz (Auto Sensing)

Transfer Time
Zero Transfer Time

Communication
SNMP (Optional)

Libert GXT MT + CX 1 KVA UPS SB (0.8 O/P) Trade Information

Minimum Order Quantity
20 Boxes

Payment Terms
Cash in Advance (CID)

Supply Ability
4 Boxes Per Week

Delivery Time
4 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India, Chhattisgarh, Madhya Pradesh, Maharashtra

About Libert GXT MT + CX 1 KVA UPS SB (0.8 O/P)

Liebert GXT MT +CX 1 KVA SB

UPS Liebert GXT MT+ Series systems are true double conversion online UPS systems designed to provide with a capacity of 1/2/3 kVA. Liebert GXT MT+ units feature total isolation of the load from the mains - isolating input and output sections and making the systems ideal for Data Networks / Small Data Centers/VOIP Applications application. The units support hot standby configuration, making them suited for critical applications like banks

IGBT Based Rectifier

True Online Double Conversion with DSP Control Technology for High Performance and Reliability.

New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and trouble shooting.

Double Conversion Efficiency up to 90%.

Active Input Power Factor Correction 0.99.

0.8 Output Power Factor.

Wide Input Voltage window (110 - 280 Vac) for Indian Environmental Condition and for Optimized Battery Performance.

Configurable Output Voltage (200/208/220/230/240 Vac.)

Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz).

4 Stage Extendable Charging Design for optimized Battery Performance.

Adjustable Battery Charging Current 1/2/4/6 Amps according to Battery Capacity and Rating.

50/60 Hz Automatic Frequency Converter Mode.

Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.

Inbuilt OVCD

Robust and Reliable Online UPS

The GXT MT + CX 1 KVA UPS is engineered to deliver dependable power to critical devices. Its advanced DSP control system guarantees seamless operation with zero transfer time, making it ideal for servers, networking equipment, and sensitive electronics. The forced air-cooled system and sturdy metal cabinet ensure lasting durability in various environments.

Advanced Real-Time Monitoring

The integrated LCD display panel offers immediate access to key operational status, voltage, load, battery, and fault information. This allows users to take prompt action if any anomaly arises, minimizing risk and maximizing uptime for essential equipment.

Comprehensive Protection Mechanisms

Equipped with multiple layers of protection including overload, short circuit, surge, and over/under voltage controls, this UPS ensures that connected equipment remains safe against sudden power disturbances. Visual and audible alarms clearly alert users to battery status and faults for proactive maintenance.

FAQ's of Libert GXT MT + CX 1 KVA UPS SB (0.8 O/P):

Q: How does the Libert GXT MT + CX 1 KVA UPS ensure uninterrupted power supply?

A: This UPS uses true online double-conversion technology and features zero transfer time, ensuring no interruption to connected devices during power outages or fluctuations. Its design maintains a steady, pure sine wave output at all times.

Q: What types of devices can benefit from using this UPS?

A: The Libert GXT MT + CX 1 KVA UPS is ideal for sensitive electronics, such as servers, networking hardware, medical equipment, and workstations, thanks to its pure sine wave output and extensive protection features.

Q: When is the UPS most effective in protecting equipment?

A: The UPS proves most effective during power interruptions, surges, and under/over voltage situations, as it instantly switches to battery mode with zero transfer time and continues to supply stable power to critical loads.

Q: Where can the UPS be installed?

A: This unit is suitable for deployment in server rooms, offices, or any location requiring continuous power for single-phase devices. Its compact, robust design makes it adaptable to various indoor environments.

Q: What is the process for monitoring and maintaining the UPS?

A: The front LCD display provides real-time operational parameters, while visual and audible alarms notify users of issues. Routine inspection of battery status and periodic checks for alarms help ensure optimal performance and reliability.

Q: How long does it take to recharge the UPS battery after a power outage?

A: The UPS's sealed maintenance-free batteries reach up to 90% of full capacity in less than 6 hours, allowing for quick restoration of backup readiness after discharge.

Q: What benefits does the communication interface provide?

A: With RS-232 and USB ports (plus optional SNMP), the UPS enables remote monitoring, management, and integration into larger network infrastructures, giving IT teams flexibility and control over power protection.
